BMW E30 335is Project Car - DesignBolt.

[E30 335i Project]

Above:

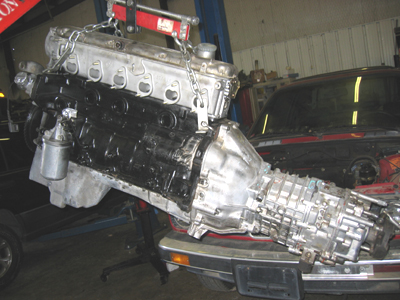

The engine/tranny is dangling from an engine lift and is ready for
installation. (04/2006)
Below:

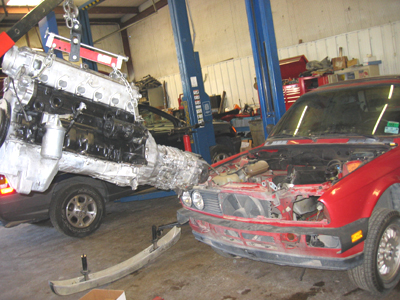

The chassy of the car is ready for the engine to be hoisted in. (04/2006)

[E30 335i Project]

[E30 335i Project]

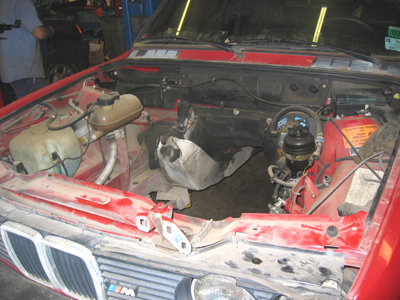

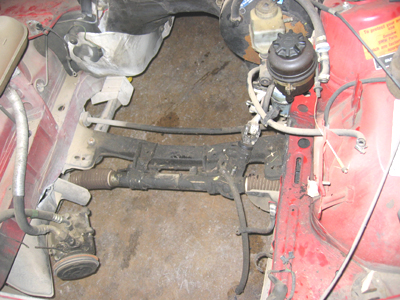

Above:
Another shot of the empty engine bay. (04/2006)
Below:
Notice the front end is being disassembled to make the installation
easier. (04/2006)

[E30 335i Project]

[E30 335i Project]

Above:
The A/C condensor had to be removed to allow room for the engine to
be hoisted in. (04/2006)
Below:
Engine almost in!! (04/2006)

[E30 335i Project]

[E30 335i Project]

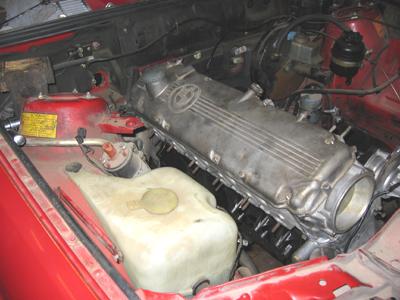

Above:
A side shot of the engine. The coolant resevoir will be replaced with the
later model "I" engine resevoir. (04/2006)

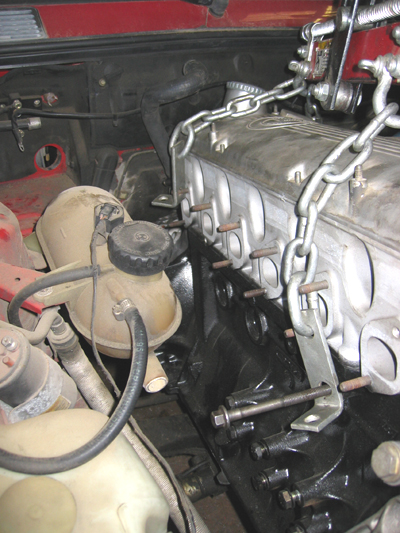

Below:

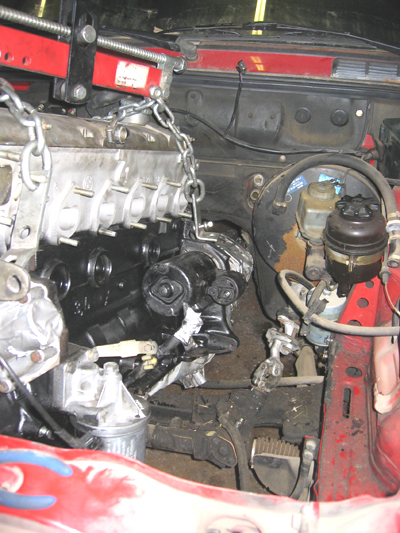

The engine being finagled into its new home. (04/2006)

[E30 335i Project]

[E30 335i Project]

Above:

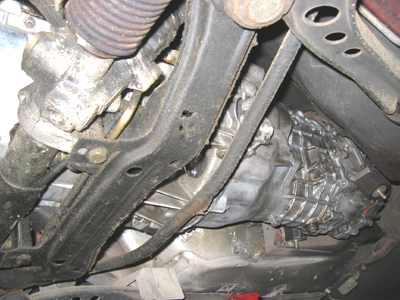

A shot of the transmission and how it sits in the car. Note that the
mounts for the transmission will be later replaced with M3 mounts
with and M3 support beam. (04/2006)

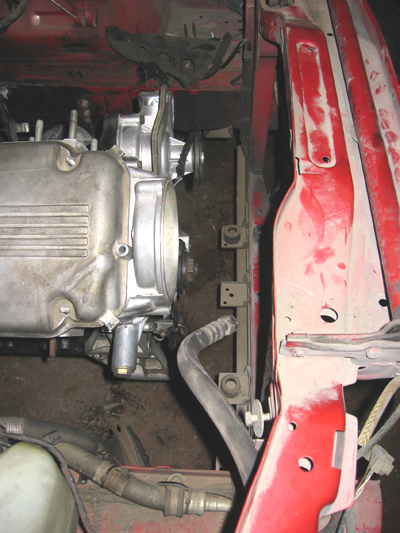

Below:

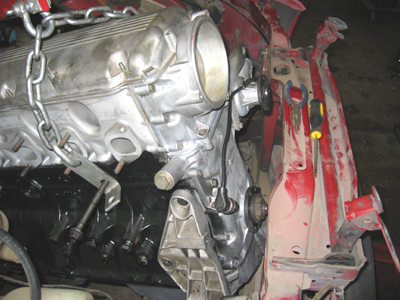

The engine will have to be pushed another 4-6 cm further back once
the firewall is modified. (04/2006)

[E30 335i Project]

[E30 335i Project]

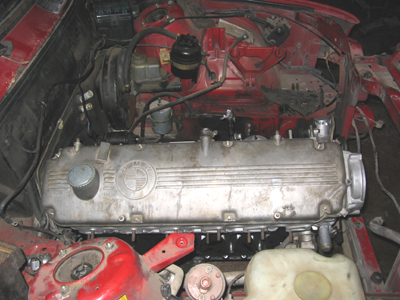

Above:

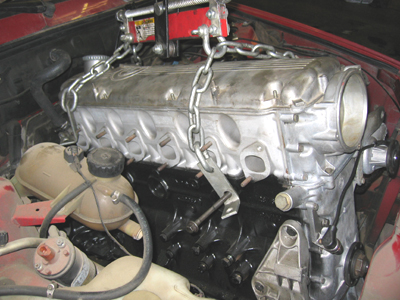

The engine sits in the chassy although many more modifications are
to come before it is actually ready. (04/2006)
Below:
Measurements at this point are being conducted. (04/2006)

[E30 335i Project]

[E30 335i Project]

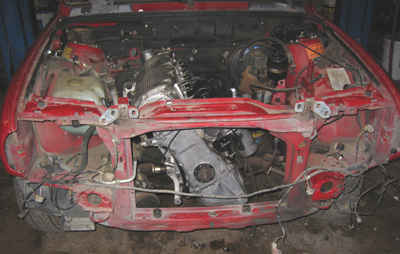

Above:
The front end of the car has been disassembled and will be converted
to the IS front spoiler and the lightweight plastic bumpers. (04/2006)

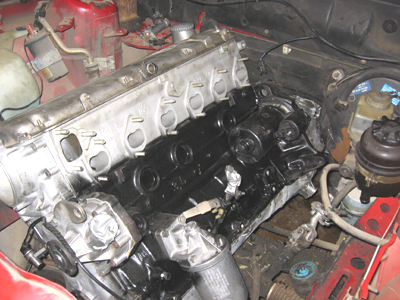

Below:
The Intake Manifold will sit atop this wonderful 3.5L. (04/2006)

[E30 335i Project]

[E30 335i Project]
