Above:

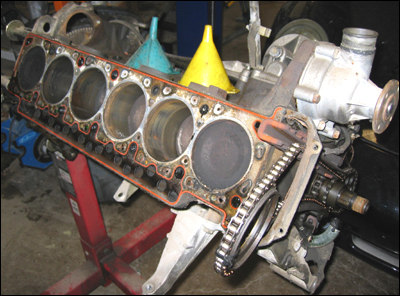

The head has been removed from the engine to expose the pistons. Very little carbon buildup exists on the pistons and the head gasket looks like it has been replaced within the last several years. (02/2005)
Below:

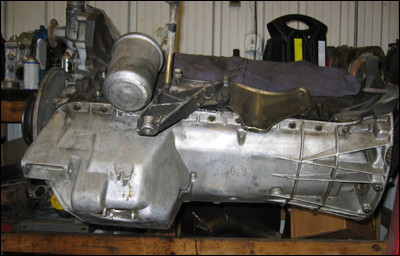

Please note that the oil pan is from the later model 735i's. (04/2005)

Below:

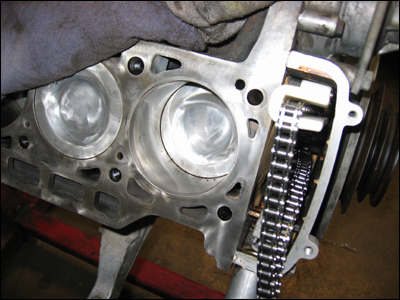

A new timing chain has been installed and the carbon buildup on the pistons has been removed. The head is ready to be installed. (05/2005)



Below:

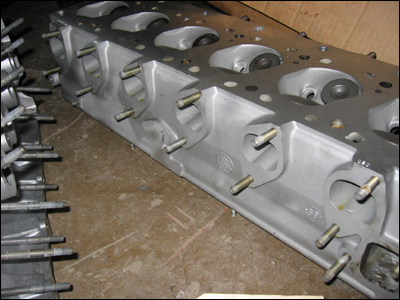

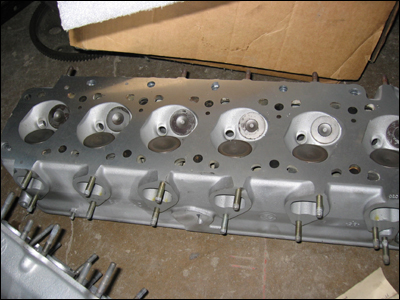

The head has just returned from the machine shop and is ready to be bolted onto the block. (06/2005)

Below:

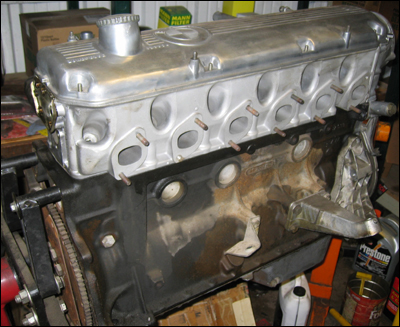

Head has been installed onto block. Note the polished valve cover. The flywheel will be later replaced with the lightened Bavarian Autosport flywheel. (08/2005)

Below:

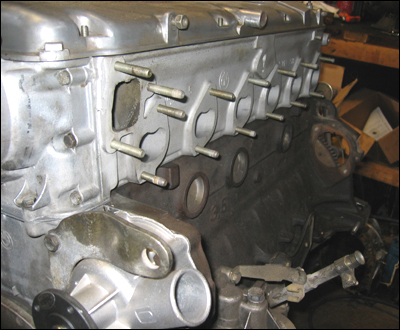

Side profile of head mounted onto block. Note: New water pump installed. (08/2005)
